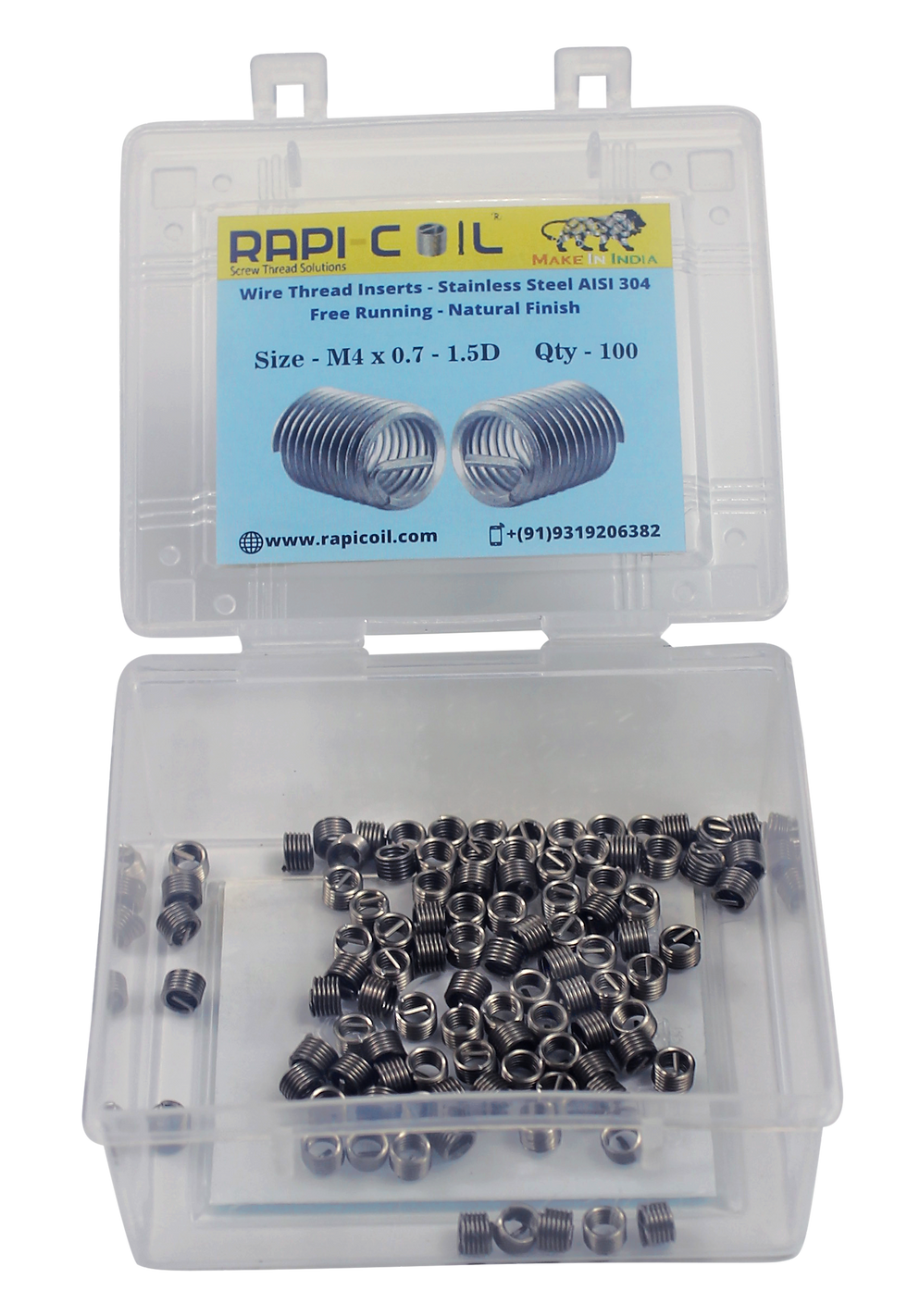

M4 x 0.7 x 1.5 Wire Thread Inserts (Boxed) - AISI304/316

NOMINAL LENGTH – 1D

Inch	mm
0.157	4.0

INSERT LENGTH (AFTER INSTALLATION) – 3.30mm

____________________________

NOMINAL LENGTH – 1.5D

Inch	mm
0.236	6.0

INSERT LENGTH (AFTER INSTALLATION) – 5.30mm

__________________________

NOMINAL LENGTH – 2D

Inch	mm
0.315	8.0

INSERT LENGTH (AFTER INSTALLATION) – 7.30mm

___________________________

NOMINAL LENGTH – 2.5D

Inch	mm
0.394	10.0

INSERT LENGTH (AFTER INSTALLATION) – 9.30mm

_______________________________

NOMINAL LENGTH – 3D

Inch	mm
0.472	12.0

INSERT LENGTH (AFTER INSTALLATION) – 11.30mm



FREE COIL DIAMETER (FCD) – 5.05 to 5.60mm
